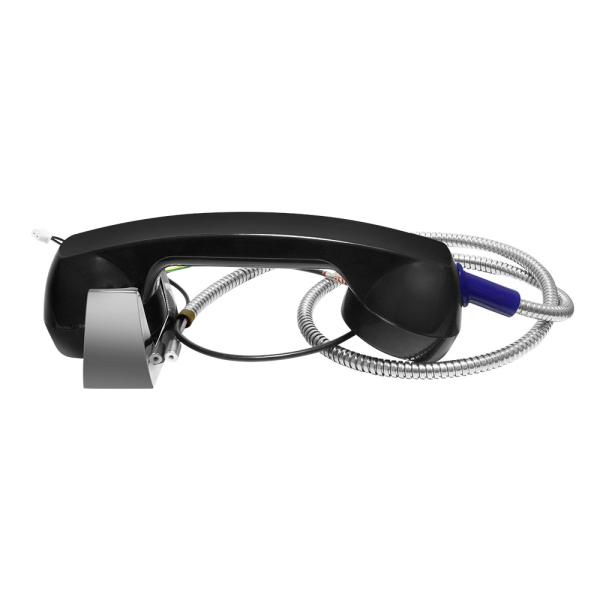

ABS Material Corded Phone Handset / Basic Telephone Handset With Armored Cord

Brand Name : J&R

Model Number : JR-HS-01S

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : Reconsideration

Payment Terms : L/C, T/T

Supply Ability : 3000 sets per month

Delivery Time : 2-3 working days

Packaging Details : pearl cotton, carton

Material : ABS material

Color : Black, Red

Handle tensile strength : >180kg

Weight : About 0.5 KG

Handset Receiver : M150H (95~97 db) / 150 Ω

Transmitter (microphone) : Electret type SG9767(33-35 db) / 2.2KΩ

Cord Lengths : 83 cm (or customized)

Contact Now

Rugged Replaceable ABS Material Telephone Handset with Armored Cord

Model Number: JR-HS-01S

FEATURES

- Handset handle and cap material: PC/ABS
- Handset type: Standard Receiver
- Wiring: Four 24 gauge insulated wires (2 for receiver, 2 for transmitter)
- Armored Cord Assembly.: 304 Stainless Steel

- Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 200 kgs
- Available Cord Lengths: 83cm (could be customized)

Drawing

ABS Material Corded Phone Handset / Basic Telephone Handset With Armored Cord

Handset Microphone specification

Item:	Electret Condenser Microphone
Model Number:	Microphone SG9070
Frequency range	100－8000Hz
Sensitivity	56±2 dB
Output Impedance	Low Impedance
Directivity	Unidirectional
Standard operation voltage	4.5V
Sensitivity reduction	Within -3dB at 1.5V
Current consumption	Max 0.5mA
Operation Temperature	-30℃ to +70℃
Storage Temperature	-40℃ to +85℃
Weight	Less than 1.0g

Handset receiver specification

RECEIVER
Model Number:	R3518M150H
ITEMS	SPECIFICATIONS	CONDITIONS
IMPEDANCE	150 ± 20% ohm ( at 1 KHz,60mV input )
SOUND PRESSURE LEVEL	97 ± 3 dB SPL ( at 1 KHz, 0dBSPL = 20μPa ) Input 60mVrms, with B&K artificial ear 4153
INPUT POWER (NOM./MAX.)	0.03W /0.25W 0.03W / 0.25W
HARMONIC DISTORTION	≤5%	300＜f≤3400Hz
OPERATING TEMPERATURE	-30°C to +70°C
NET WEIGHT	APPROX. 35.0gram
